Driven Pile Design in Hobart – Geotechnical Solutions for Deep Foundations

Hobart sits on a mix of Permian mudstone, Triassic sandstone, and Quaternary alluvial deposits along the Derwent estuary. Beneath the city centre, stiff clays and dense sands alternate with weathered rock layers at depths between 8 and 15 metres. For any project requiring deep foundations, driven pile design must account for these variable strata to ensure load transfer reaches competent bearing material. Before finalising the pile layout, we always run a borehole program and correlate the results with local geotechnical records from nearby developments. A critical step is combining the field data with an ensayo SPT to obtain reliable N-values that feed directly into the shaft and toe resistance calculations.

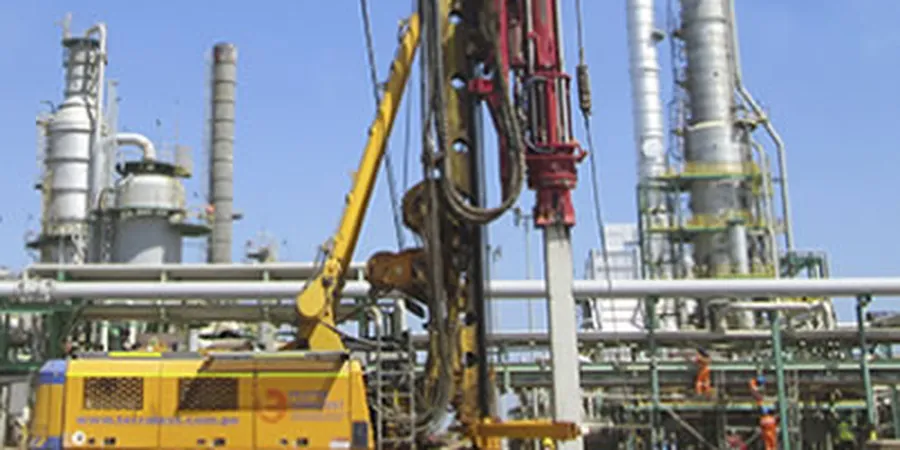

Illustrative image of Pilotes hincados in Hobart
A single missed layer of loose sand or a thin clay seam can reduce the design load by more than 30 percent in Hobart's variable alluvial soils.

Methodology and scope

The soil behaviour under Sandy Bay differs notably from what we see in the industrial zone near Brighton. In Sandy Bay, stiff clays dominate the upper 6 metres, while Brighton presents loose sands overlying dense gravels. These contrasts directly influence the driven pile design parameters: shaft friction develops differently in cohesive versus granular soils, and end-bearing values shift accordingly. To capture this variability, our approach involves a phased investigation:
  • Continuous coring through the upper 10 metres to identify transitions between soil types
  • Standard Penetration Tests at 1.5-metre intervals to build a consistent N-value profile
  • Laboratory classification tests (moisture content, Atterberg limits, particle size distribution) to confirm the field descriptions
All data is then combined with a capacidad de carga analysis to determine the ultimate and allowable pile capacities for the specific Hobart site.

Local considerations

In Hobart, we often find that the alluvial terraces next to the Derwent contain discontinuous layers of loose sand or soft clay. These pockets are easy to miss with wide-spaced boreholes. If the driven pile design ignores these weak interbeds, the pile can punch through or develop excessive settlement under service loads. We mitigate this by reducing the borehole spacing to 15 metres along the foundation line and by using continuous sampling in the upper 10 metres, which is where most of the troublesome layers appear. The extra investigation cost is small compared to the risk of a foundation failure.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.vip

Applicable standards

AS 2159-2009 (Piling – Design and Installation), AS 1726-2017 (Geotechnical Site Investigations), AS/NZS 1170.0-2002 (Structural Design Actions – General Principles), AS 1289 (High-Strain Dynamic Testing of Piles)

Associated technical services

01

Subsurface Investigation & Sampling

Boreholes with SPT, undisturbed tube sampling, and continuous coring through the upper 15 metres. All samples are logged on site and transported to our NATA-accredited laboratory for classification testing.

02

Capacity Analysis & Pile Design Parameters

Using the field N-values and laboratory results, we calculate unit shaft friction and end-bearing resistance for each soil layer. The output includes a factored design load table and recommended pile type (displacement or non-displacement) for the specific Hobart conditions.

03

Verification Testing (PDA & Static Load Tests)

After installation, we offer high-strain dynamic testing per AS 1289 and static compression tests to confirm that the driven pile design assumptions match the as-built performance. Results are compared against the design predictions and reported within 48 hours.

Typical parameters

ParameterTypical value
Ultimate shaft resistance (clay)40–120 kPa
Ultimate shaft resistance (sand)60–180 kPa
End-bearing resistance (dense sand/gravel)3–8 MPa
End-bearing resistance (weathered sandstone)6–15 MPa
Maximum pile depth (typical Hobart)12–20 m

Frequently asked questions

What is the typical soil profile for driven pile design in Hobart?

Most Hobart sites show a top layer of stiff clay or sandy clay (2–6 m), underlain by dense to very dense sands and gravels (5–10 m), then weathered mudstone or sandstone. The depth to rock varies widely, from 8 m near the city centre to over 20 m in the northern suburbs.

How do you determine the shaft friction for driven piles in clay?

We use the undrained shear strength (cu) from triaxial tests on undisturbed samples. For Hobart clays, the alpha method (alpha = 0.5–0.7) gives reliable shaft resistance values. The N-values from SPT are also correlated via empirical relationships to cross-check the results.

What is the cost range for a driven pile design study in Hobart?

A complete study including boreholes, SPT, laboratory testing, and final design report typically ranges between AU$1,740 and AU$7,130 depending on the number of boreholes and the depth required. The cost increases if verification testing (PDA or static load) is added.

Which Australian standard governs driven pile design?

The primary standard is AS 2159-2009, which covers piling design and installation. It works together with AS 1726-2017 for the site investigation and AS/NZS 1170.0 for the structural actions. Our reports reference all three standards explicitly.

Can driven piles be used in Hobart's old landfill or reclaimed areas?

Yes, but with caution. Piles can be driven through fill and refuse layers to reach natural ground. However, negative skin friction from settling fill must be included in the design. We always run a settlement analysis on the fill layers before finalising the driven pile design for these sites.
