Hobart sits on a mix of Permo-Triassic sedimentary rocks overlain by Quaternary clays in the Derwent estuary floodplain. These clay horizons, particularly the black clays of the Bridgewater Formation, exhibit moderate to high shrink-swell potential. Our expansive soil evaluation for Hobart starts with index tests to identify the clay mineralogy—usually illite and smectite mixtures. From there we run free swell tests and swell pressure measurements to quantify volumetric change under load. That data feeds directly into foundation design parameters. For shallow footings we often recommend a cimentaciones superficiales study to check bearing capacity against seasonal moisture changes. The local geology demands attention to detail.
Swell pressures in Hobart's Bridgewater clays can exceed 150 kPa, enough to lift lightly loaded slabs and strip footings.
Methodology and scope
Local considerations
AS 2870 classifies Hobart as a moderately reactive clay site, but site-specific conditions can push it into highly reactive (H1 or H2). Missing a swell pressure evaluation means you risk differential heave under slabs and footings. That is not a theoretical problem. We have seen slabs lifted 40 mm in the Moonah area because the designer assumed a non-reactive profile. Our expansive soil evaluation for Hobart includes a moisture index study that accounts for the region's 650 mm annual rainfall and 4-month dry summer. We use that data to estimate the design suction change depth, typically 1.2 to 1.8 m for Hobart conditions.
Explanatory video
Applicable standards
AS 2870-2011 (Residential slabs and footings), AS 1289.7.1.1 (Swell index test), AS 1726-2017 (Geotechnical site investigations)
Associated technical services
Atterberg Limits & Linear Shrinkage
Determination of liquid limit, plastic limit, plasticity index, and linear shrinkage to classify clay reactivity per AS 2870.

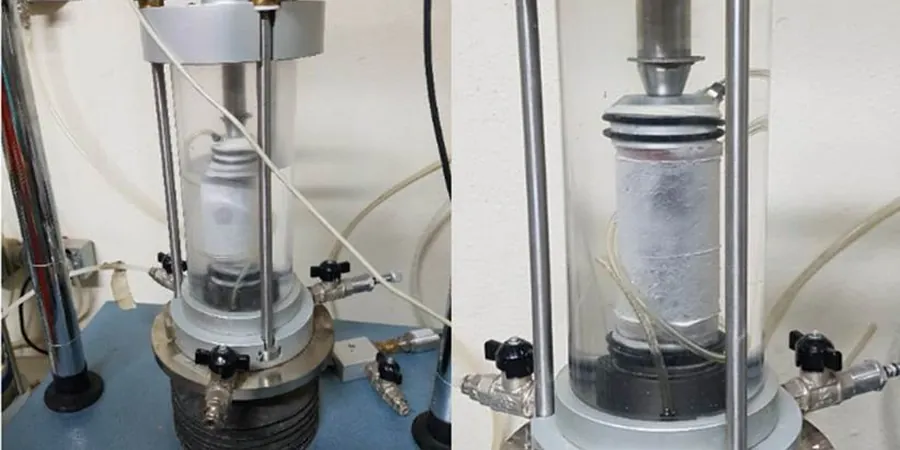

Free Swell & Swell Pressure Tests
Oedometer-based swell tests at seating pressure plus incremental loading to measure swell pressure and free swell percentage.
Cyclic Swell-Shrink Simulation
Multi-cycle wetting and drying to simulate seasonal moisture changes and quantify cumulative volumetric strain.
Moisture Index & Suction Profile
Field suction measurements using filter paper method and correlation with local rainfall data to estimate design suction change depth.
Typical parameters
Frequently asked questions
What is the difference between free swell and swell pressure?
Free swell measures the vertical strain of a soil sample when inundated under a small seating load (usually 5 kPa). Swell pressure is the stress required to prevent any volume increase during inundation. Both are needed to design footings against heave.
How long does an expansive soil evaluation take for a Hobart residential project?
A standard evaluation with Atterberg limits, linear shrinkage, and one free swell test takes about 10 working days. If cyclic swell-shrink testing is required, allow 14 working days.
What is the typical cost for an expansive soil evaluation in Hobart?
For a residential site with 3 to 5 samples, the cost ranges between AU$990 and AU$2,700 depending on the number of tests and whether cyclic testing is included.
Do you need undisturbed samples for swell testing?
Yes. Swell tests require undisturbed tube samples (typically 75 mm diameter) retrieved from each reactive clay layer. Disturbed samples are only used for index tests like Atterberg limits.
