Hobart sits on a complex mix of Permian mudstone, Triassic sandstone, and Quaternary alluvial deposits along the Derwent estuary, with groundwater tables often encountered between 2 and 5 metres depth. For any deep foundation project here, understanding the balance between pile skin friction and end bearing capacity is not optional; it is the difference between a safe design and a costly overdesign. We perform detailed analysis of shaft resistance versus toe resistance using direct shear and triaxial results from undisturbed samples, then cross-reference with SPT N-values from boreholes. Before mobilising a rig, we recommend a standard penetration test to confirm strength profiles and a borehole logging to map stratigraphy accurately.
In Hobart’s layered geology, shaft friction can drop by 40% in wet mudstone, while end bearing in dolerite exceeds 5 MPa — knowing which dominates is critical.
Methodology and scope
Local considerations
The most frequent risk in Hobart’s deep foundations is misjudging skin friction in the upper weathered mudstone, which can lose up to 40% of its shear strength when saturated after heavy rain. On the waterfront side, soft estuarine clays up to 6 metres thick offer negligible shaft resistance, forcing the design to rely almost entirely on end bearing in the underlying Permian strata. A second risk is encountering boulders within the alluvial fan deposits near the foothills of Mount Wellington, which can damage pile toes and reduce effective bearing area. We mitigate these by correlating CPT sleeve friction with direct shear tests on split-spoon samples, and by verifying every stratum change during construction using pile driving records.
Applicable standards
AS 2159-2009 Piling — Design and Installation, AS 1726-2017 Geotechnical Site Investigations, FHWA-NHI-16-072 Design and Construction of Driven Pile Foundations (Vol I & II)
Associated technical services
Static Load Test Interpretation
We perform maintained-load tests on instrumented piles with strain gauges at multiple depths to separate skin friction and end bearing components. Results are interpreted using Davisson offset and Chin-Kondner methods per AS 2159.
CPT-Based Friction Ratio Profiling
Continuous cone penetration testing provides sleeve friction and tip resistance at 20 mm intervals. We use the friction ratio (R_f) to classify soil behaviour type and calculate unit shaft resistance for each layer, validated against lab direct shear tests.
Numerical Modelling (t-z & Q-z Curves)
Using non-linear load-transfer curves derived from triaxial and consolidation data, we model the pile response under axial load. This predicts settlement at working load and identifies whether shaft or base governs the ultimate capacity.
Typical parameters
Frequently asked questions

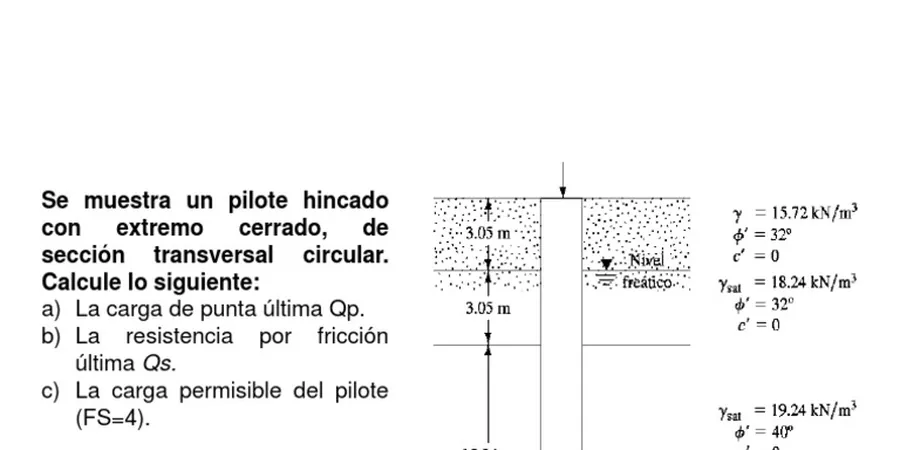

What is the difference between skin friction and end bearing in piles?
Skin friction is the load carried by the pile shaft through shear resistance along the soil-pile interface, while end bearing is the load transferred through the pile tip to the underlying stratum. The proportion of each depends on soil type, pile geometry, and installation method. In Hobart, skin friction dominates in deep clay layers, whereas end bearing becomes critical when piles reach dolerite bedrock.
How much does a pile skin friction vs. end bearing analysis cost in Hobart?
The typical cost for a full analysis including field testing, lab work, and numerical modelling ranges between AU$1,440 and AU$4,370, depending on the number of pile test locations and the depth of investigation required. This covers CPT profiling, direct shear tests, and load transfer modelling per AS 2159.
When should I rely more on end bearing than skin friction in Hobart?
Rely on end bearing when piles are founded on dolerite or competent sandstone below 10–15 m depth, as these layers offer ultimate bearing capacities exceeding 5 MPa. Skin friction becomes unreliable in the upper 6 m of saturated estuarine clays or weathered mudstone, where shaft resistance can drop below 50 kPa after prolonged rainfall.
